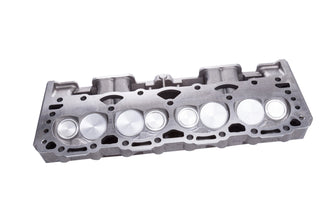

Small Port Vortec Bowtie Cylinder Head Assembly - 19331470
Get the performance you need with the Chevrolet Performance Cylinder Head Assembly. Cylinder heads sit on top of the cylinder block to form the combustion chamber, and have ports for the fuel/air mixture and exhaust gases to travel through. The Vortec Bowtie cylinder head assembly is made of cast iron and offers Fast Burn performance. It features a small port, big valves, a thick deck surface, hardened exhaust valve seats, and a straight spark plug design. The head is machined for 2.000-inch/1.550-inch valves, and is assembled with 2.0-inch intake valves and 1.55-inch sodium-filled exhaust valves, beehive valve springs, spring retainers and locks, valve stem seals, and 3/8 screw-inch rocker arm studs. It does not include heat risers, and requires an exhaust gasket. No matter what you're driving or what you're building, Chevrolet Performance has a wide range of engines, parts and other accessories to help you fulfill your project-vehicle dream.
- Upgraded production cylinder heads, ideal for 400-450 horsepower street and racing engines, especially for circle track applications
- Outstanding low-lift flow numbers - the more air you flow, the more potential power
- Completely assembled and ready to bolt on
- 0.450-inch deck thickness
- 0.530-inch maximum valve spring lift
- 23-degree valve angle
- 185cc intake ports
- 65cc exhaust ports
- 66cc combustion chamber
- 185cc intake runner volume
- Sits on top of the cylinder block, forming the combustion chamber
Additional Attributes
Get the performance you need with the Chevrolet Performance Cylinder Head Assembly. Cylinder heads sit on top of the cylinder block to form the combustion chamber, and have ports for the fuel/air mixture and exhaust gases to travel through. The Vortec Bowtie cylinder head assembly is made of cast iron and offers Fast Burn performance. It features a small port, big valves, a thick deck surface, hardened exhaust valve seats, and a straight spark plug design. The head is machined for 2.000-inch/1.550-inch valves, and is assembled with 2.0-inch intake valves and 1.55-inch sodium-filled exhaust valves, beehive valve springs, spring retainers and locks, valve stem seals, and 3/8 screw-inch rocker arm studs. It does not include heat risers, and requires an exhaust gasket. No matter what you're driving or what you're building, Chevrolet Performance has a wide range of engines, parts and other accessories to help you fulfill your project-vehicle dream.
- Upgraded production cylinder heads, ideal for 400-450 horsepower street and racing engines, especially for circle track applications
- Outstanding low-lift flow numbers - the more air you flow, the more potential power
- Completely assembled and ready to bolt on
- 0.450-inch deck thickness
- 0.530-inch maximum valve spring lift
- 23-degree valve angle
- 185cc intake ports
- 65cc exhaust ports
- 66cc combustion chamber
- 185cc intake runner volume
- Sits on top of the cylinder block, forming the combustion chamber
Additional Attributes
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
19331470 |
| Weight: |
53.0 lb |
